Hyundai Marine Circuit Breaker (MCCB) - HGM50H 3P Fixed / Plug-in Type
Hyundai Marine Circuit Breaker (MCCB) - HGM50H 3P Fixed / Plug-in Type
Regular price
$188.00 SGD
Regular price
Sale price
$188.00 SGD
Unit price
/
per

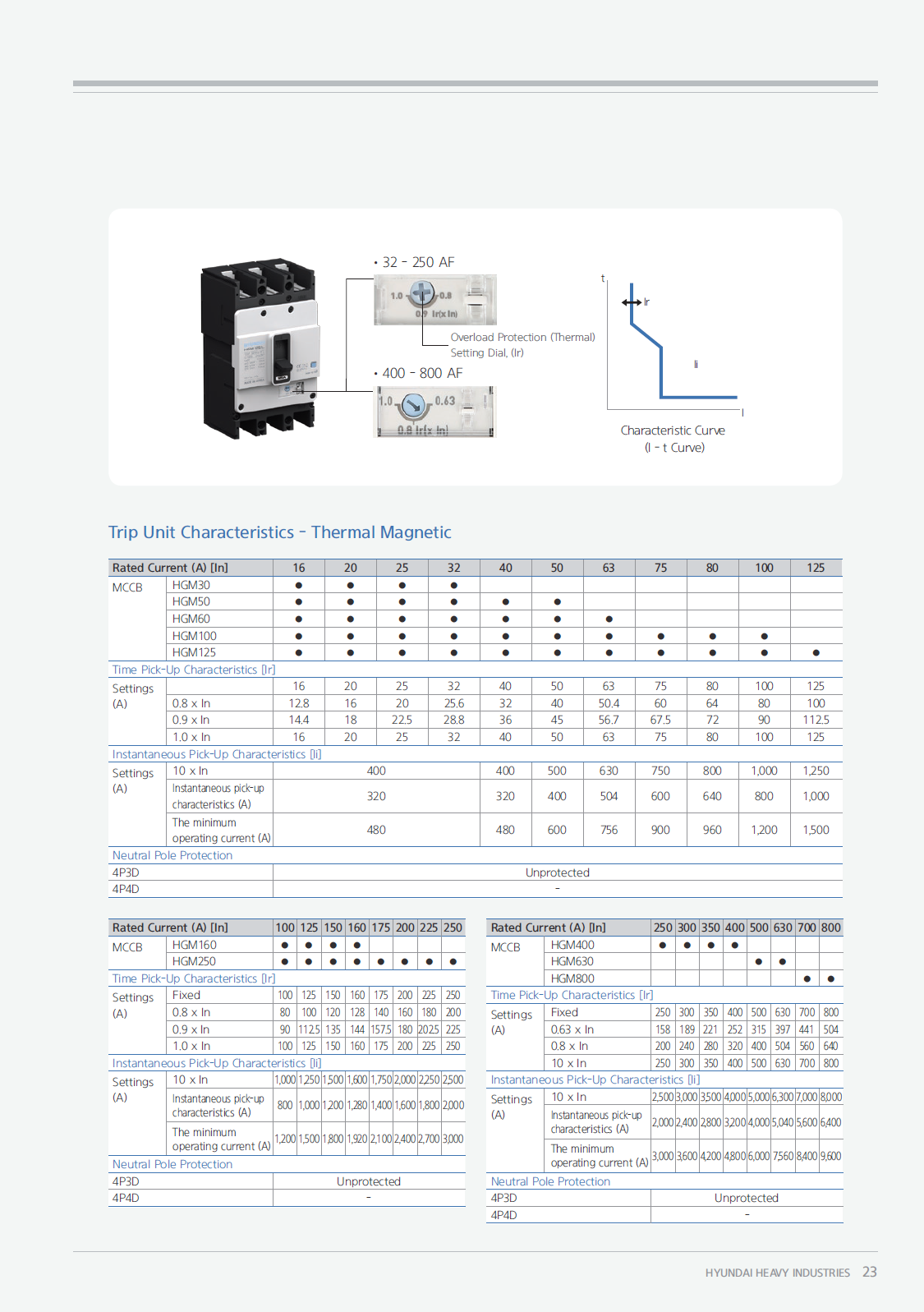

HYUNDAI HGM Type Molded Case Circuit Breakers
Advanced Breaking Performance and Various Selectivity
Various Product Range: 32 - 800 AF, 10 Frames
Standardized Size of Accessories, Compatible with MCCB and ELCB
Standardized Height of Products by Frame: 32 - 250 AF (68 mm), 400 - 800 AF (110 mm)
High Breaking Capacity
16 - 30 kA at 460 V (100 AF)
20 - 55 kA at 460 V (125 - 250 AF)
38 - 85 kA at 460 V (400 - 800 AF)
Approvals and Certifications
HG-Series MCCB has acquired the certification from the TEST agency registered in STL.
