Hyundai Marine Circuit Breaker (MCCB) - HGP160DH 3P Fixed / Plug-in Type
Hyundai Marine Circuit Breaker (MCCB) - HGP160DH 3P Fixed / Plug-in Type
Couldn't load pickup availability
HYUNDAI HGP Type Molded Case Circuit Breakers
Ui: 1,000 V Uimp: 8 kV Ics = 100 % Icu
Wide Range of Products, 50 - 800 AF
High Breaking Capacity up to 150 kA at 460 V
Adjustable Operating Characteristics

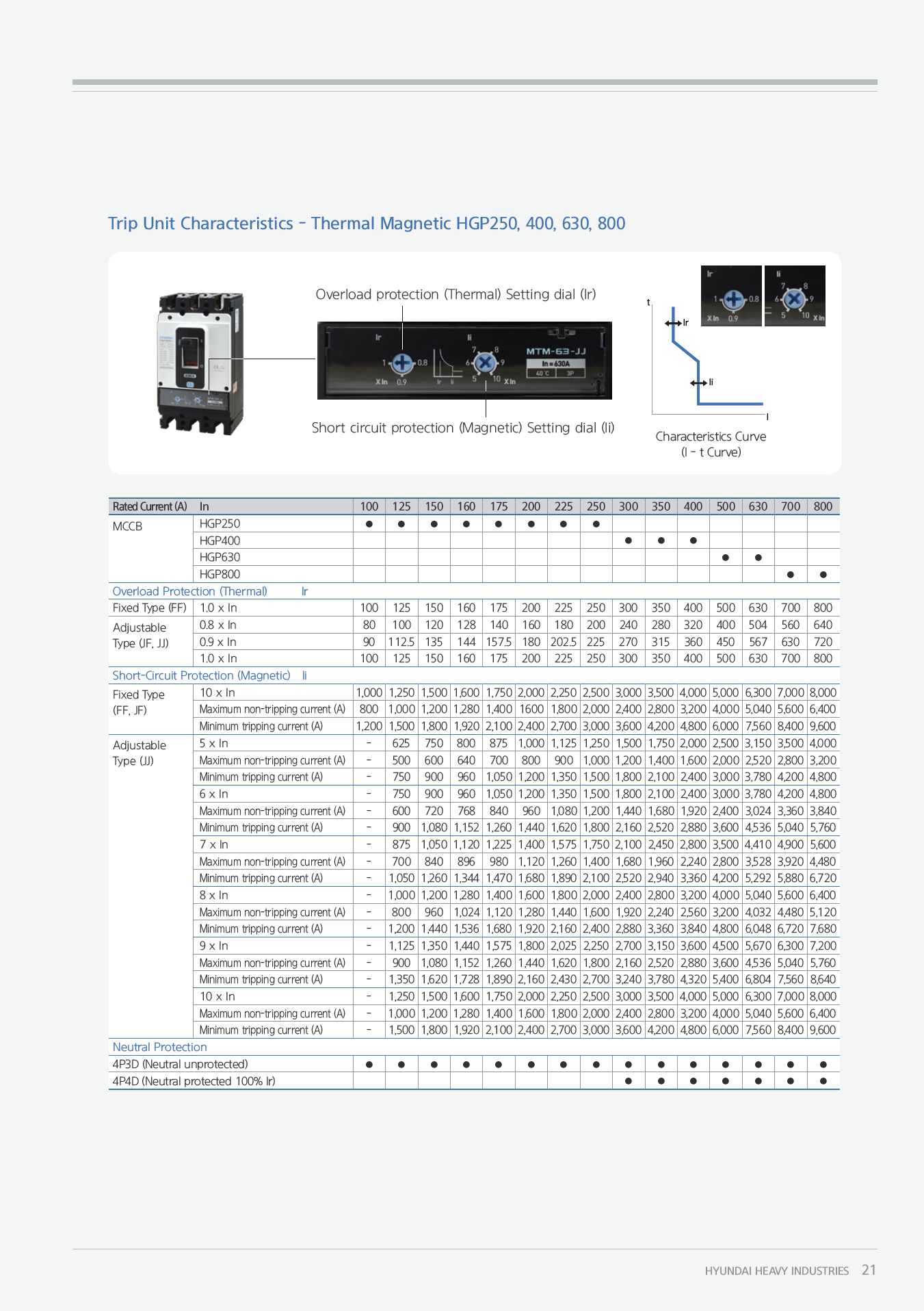

Long Time Current: 0.8 - 0.9 - 1 x In / Instantaneous Current: 5 - 6 - 7 - 8 - 9 - 10 x In
Reinforcement of Protective Coordination
Acquisition of DEKRA Certification
Maximizing Breaking Capacity and Perfect Coordination
Simplified Dimensions, 4 Frame Sizes 50 - 800 AF
Adjustable of Rated Currents in all Models
High Breaking Capacity in all Frame, up to 150 kA at 460 V
Wide Coordination with Discrimination and Cascading
Guaranteed Breaking Capacity in Reverse Connection
Approvals and Certifications
HG-Series MCCB has acquired the certification from the TEST agency registered in STL.
