Hyundai Marine Circuit Breaker (MCCB) - HGP50DS 3P Fixed / Plug-in Type

Hyundai Marine Circuit Breaker (MCCB) - HGP50DS 3P Fixed / Plug-in Type

Regular price $388.00 SGD
Regular price Sale price $388.00 SGD
Sale Sold out

HYUNDAI HGP Type Molded Case Circuit Breakers

 Ui: 1,000 V Uimp: 8 kV Ics = 100 % Icu



Wide Range of Products, 50 - 800 AF

High Breaking Capacity up to 150 kA at 460 V

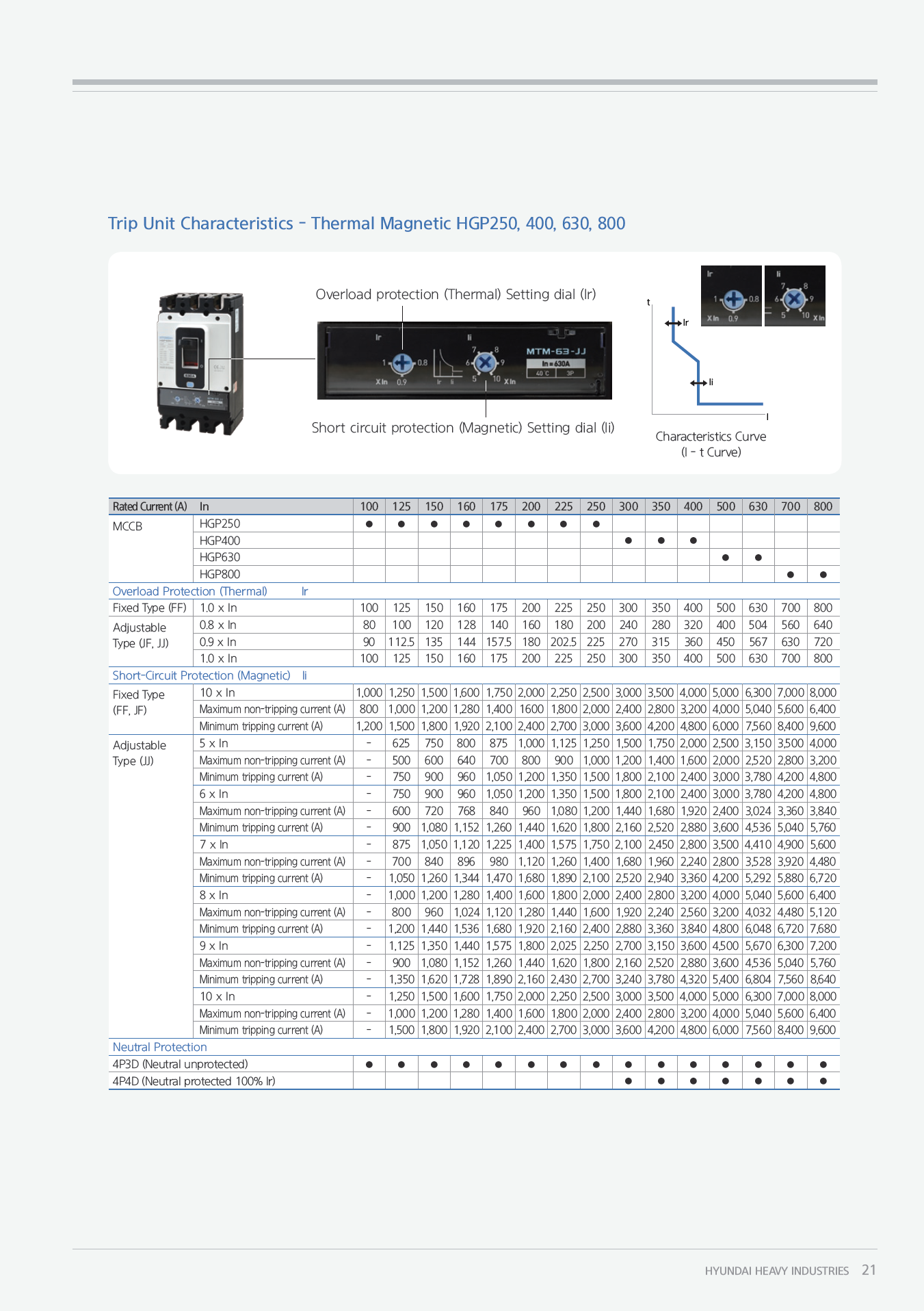

Adjustable Operating Characteristics

Long Time Current: 0.8 - 0.9 - 1 x In / Instantaneous Current: 5 - 6 - 7 - 8 - 9 - 10 x In

Reinforcement of Protective Coordination

Acquisition of DEKRA Certification

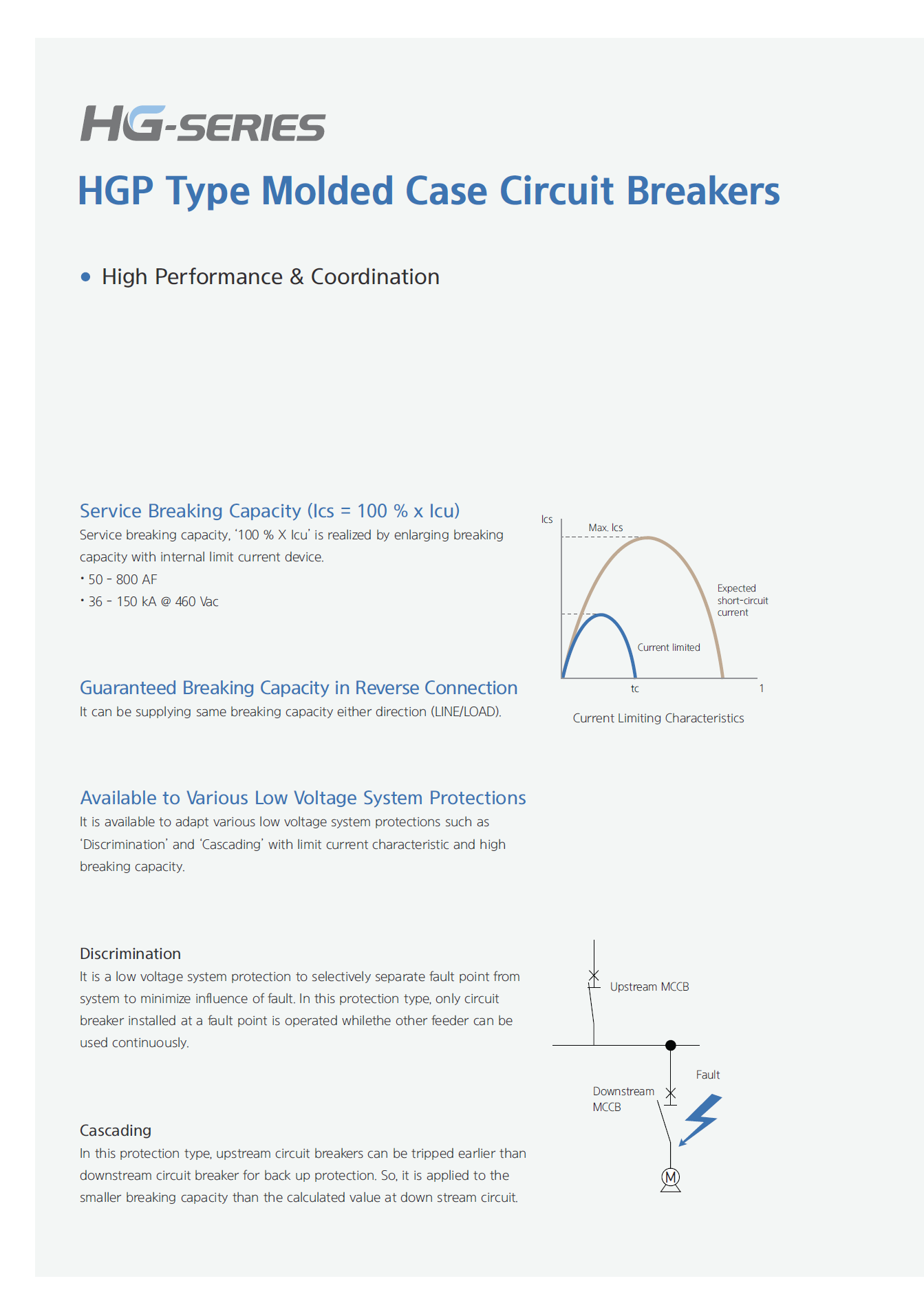

Maximizing Breaking Capacity and Perfect Coordination

Simplified Dimensions, 4 Frame Sizes 50 - 800 AF

Adjustable of Rated Currents in all Models

High Breaking Capacity in all Frame, up to 150 kA at 460 V

Wide Coordination with Discrimination and Cascading

Guaranteed Breaking Capacity in Reverse Connection



Approvals and Certifications

HG-Series MCCB has acquired the certification from the TEST agency registered in STL.

TL.
